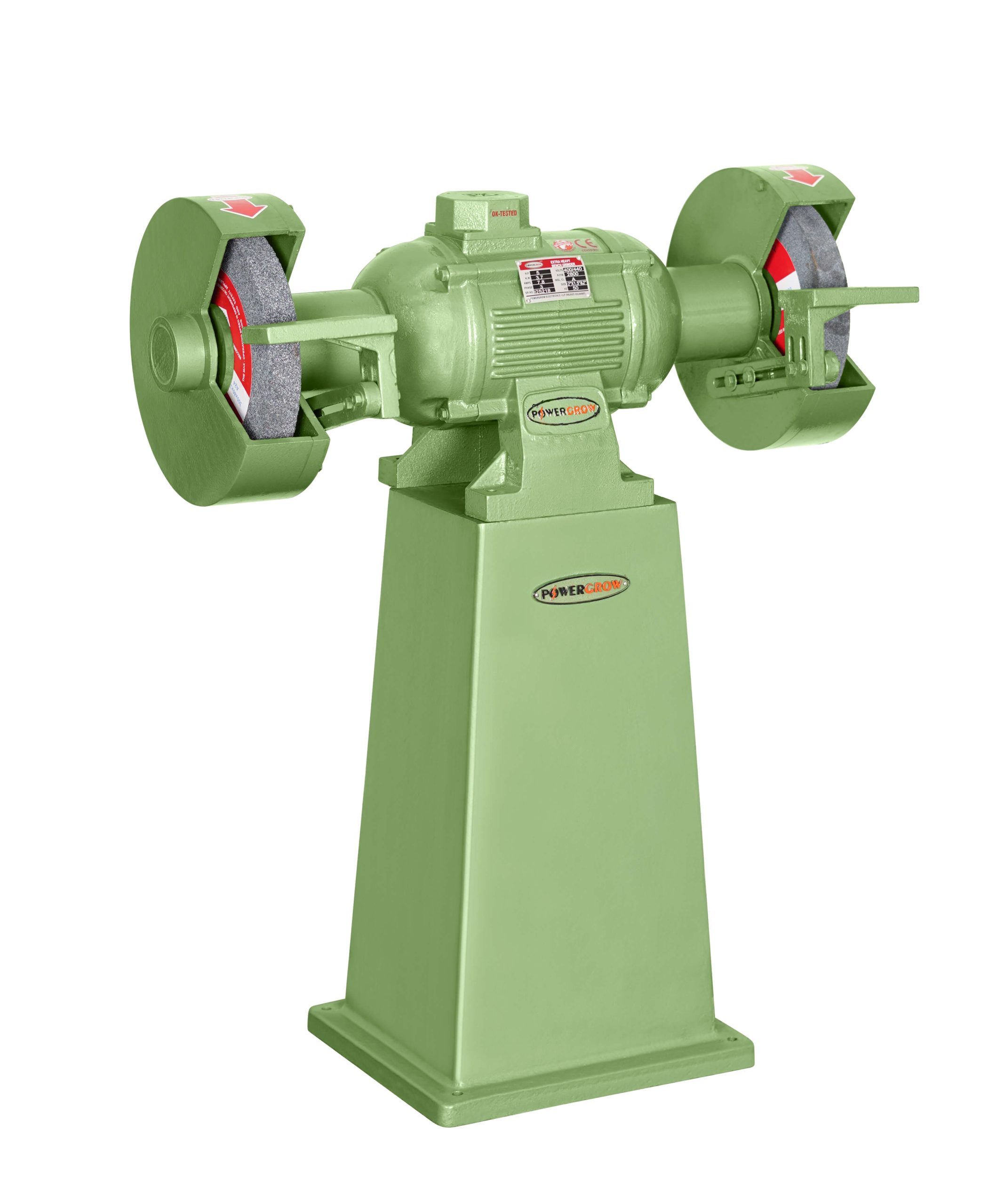

EXTRA HEAVY PEDESTAL GRINDER

EXTRA HEAVY DUTY PEDESTAL GRINDER

POWERGROW make Pedestal Grinders are suitable for use for forging Industries, foundries and for heavy duty grinding jobs. “POWERGROW” Make Heavy Duty Bench Grinders are available from 2 HP to 5 HP and in 1440 RPM and 2800 RPM as per application of use. These are customized as per the specifications of our clients and are designed and developed in accordance with the latest Indian standards. Thus, our state-of-the-art facilities and technical expertise has helped us considerably in maintaining excellence throughout our business operations’ pedestal grinder is a similar or larger version of grinder that is mounted on a pedestal, which may be bolted to floor or may sit on rubber feet.

Application

SHARPENING TOOLS, DRILL BIT, METAL SHAPING, METAL GRINDING, GRINDING FORGING AND CASTING PARTS, SHARPENING BLADES, DEBURRING, GRINDING PRECISION COMPONENTS. BIG USE FOR CASTING AND FORGING INDUSTRIES, FABRICATION, MACHINE TOOLS, RAILWAY WORKSHOP, COLLEGE WORKSHOPS, SURFACE ROUGHNESS, REMOVAL OF BIG BURRS, INDUSTRIAL BIG TOOL GRINDING, IRON AND CASTING PARTS, FABRICATION, MACHINE TOOLS.

Features

Specifications

EXTRA HEAVY DUTY PEDESTAL GRINDER

MODEL NO.	PPPG-1	PPPG-2	PPPG-3
H.P.	0.50	0.75	1
K.W.	0.37	0.55	0.75
WHEEL SIZE	150X20	200X25	250X25
WHEEL BORE	31.75	31.75	5
POWER	3PH/440V 1PH/230V	3PH/440V 1PH/230V	3PH/440V 1PH/230V
FREQUENCY	50HZ	50HZ	50HZ
R.P.M.	2800	2800	2800
APPROX WEIGHT	65 KG	70 KG	110 KG
MOTOR MAKE	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’
BEARING (2RS)	6204 (2PIC)	6205 (2PIC)	6205 (2PIC)
SHAFT SIZE	15.80 MM	19.00 MM	19.00 MM
BODY MATERIAL	CAST IRON	CAST IRON	CAST IRON
SWITCH (10A)	SWITCH	SWITCH	SWITCH
L X B X H (MM)	540 X 300 X 1240	500 X 300 X 1060	680 X 380 X 1105
MS STAND MODEL	PPS-4	PPS-4	PPS-5

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER

EXTRA HEAVY DUTY PEDESTAL GRINDER (1440 RPM)

POWERGROW make Pedestal Grinders are suitable for use for forging Industries, foundries and for heavy duty grinding jobs. “POWERGROW” Make Heavy Duty Bench Grinders are available from 2 HP to 5 HP and in 1440 RPM and 2800 RPM as per application of use. These are customized as per the specifications of our clients and are designed and developed in accordance with the latest Indian standards. Thus, our state-of-the-art facilities and technical expertise has helped us considerably in maintaining excellence throughout our business operations’ pedestal grinder is a similar or larger version of grinder that is mounted on a pedestal, which may be bolted to floor or may sit on rubber feet.

Application

SHARPENING TOOLS, DRILL BIT, METAL SHAPING, METAL GRINDING, GRINDING FORGING AND CASTING PARTS, SHARPENING BLADES, DEBURRING, GRINDING PRECISION COMPONENTS. BIG USE FOR CASTING AND FORGING INDUSTRIES, FABRICATION, MACHINE TOOLS, RAILWAY WORKSHOP, COLLEGE WORKSHOPS, SURFACE ROUGHNESS, REMOVAL OF BIG BURRS, INDUSTRIAL BIG TOOL GRINDING, IRON AND CASTING PARTS, FABRICATION, MACHINE TOOLS.

Features

EXTRA HEAVY DUTY PEDESTAL GRINDER (1440 RPM)

POWERGROW make Pedestal Grinders are suitable for use for forging Industries, foundries and for heavy duty grinding jobs. “POWERGROW” Make Heavy Duty Bench Grinders are available from 2 HP to 5 HP and in 1440 RPM and 2800 RPM as per application of use. These are customized as per the specifications of our clients and are designed and developed in accordance with the latest Indian standards. Thus, our state-of-the-art facilities and technical expertise has helped us considerably in maintaining excellence throughout our business operations’ pedestal grinder is a similar or larger version of grinder that is mounted on a pedestal, which may be bolted to floor or may sit on rubber feet.

Application

SHARPENING TOOLS, DRILL BIT, METAL SHAPING, METAL GRINDING, GRINDING FORGING AND CASTING PARTS, SHARPENING BLADES, DEBURRING, GRINDING PRECISION COMPONENTS. BIG USE FOR CASTING AND FORGING INDUSTRIES, FABRICATION, MACHINE TOOLS, RAILWAY WORKSHOP, COLLEGE WORKSHOPS, SURFACE ROUGHNESS, REMOVAL OF BIG BURRS, INDUSTRIAL BIG TOOL GRINDING, IRON AND CASTING PARTS, FABRICATION, MACHINE TOOLS.

Features

Specifications

EXTRA HEAVY DUTY PEDESTAL GRINDER (1440 RPM)

MODEL NO.	PPG-06	PPG-07	PPG-08	PPG-09
H.P.	7.5	5	7.5	7.5
K.W.	5.5	3.7	5.5	5.5
WHEEL SIZE	300 X 40 X 31.75	350 X 50 X 50.8	350 X 50 X 50.8	400 X 50 X 50.8
WHEEL BORE	31.75,38.1	50.8	50.8	50.8
POWER	3PH/440V	3PH/440V	3PH/440V	3PH/440V
FREQUENCY	50 HZ	50 HZ	50 HZ	50 HZ
R.P.M.	2800/1440	1440	1440	1440
APPROX WEIGHT	135 KG	140 KG	150 KG	160 KG
MOTOR MAKE	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’
SHAFT SIZE	31.75 MM	38.1 MM	38.1 MM	38.1 MM
BODY MATERIAL	CAST IRON	CAST IRON	CAST IRON	CAST IRON
CENTER HEIGHT	930 MM	970 MM	970 MM	970 MM
STARTER	9 TO 13 AMP	6 TO 10 AMP	9 TO 13 AMP	9 TO 13 AMP
WINDING	100% COPPER	100% COPPER	100% COPPER	100% COPPER

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER
