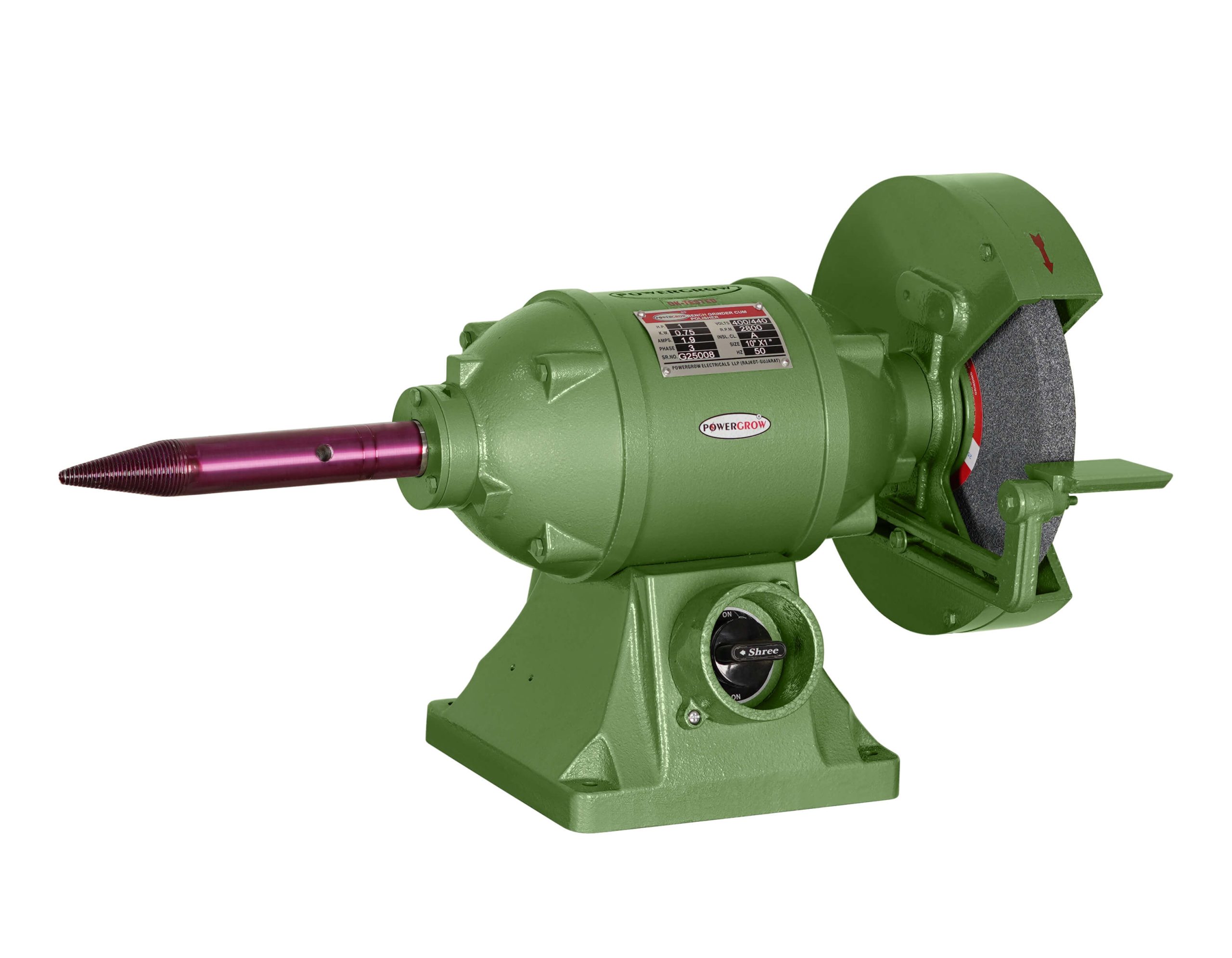

GRINDER CUM POLISHER

GRINDER CUM POLISHER (3 PHASE)

POWERGROW Polisher, retreating machine, grinder cum polisher is designed with up-to-date improvement to give the best performance. Special care has been taken in design of the core winding and in balance adjustment of the rotor for smooth running with maximum efficiency. Ball-bearing housing is suitably sealed with special care to prevent ingress of fine dust, produced by buffing operation, in to the bearings. The machines are robust in construction and are specially designed to give years of trouble-free service. This Products use of one side buffing and other side Grinding uses.

Application

INDUSTRIAL TOOL GRINDING, SMALL GRINDING OF IRON AND CASTING PARTS, FABRICATION, MACHINE TOOLS, SMALL WORKSHOP LATH AND DRILL BITS, METALWORKING, EDUCATION AND TRAINING, WOODWORKING.

Features

Specifications

GRINDER CUM POLISHER (3 PHASE)

MODEL NO.	PGP-01	PGP-02	PGP-03	PGP-04
H.P.	0.5	0.75	1	2
K.W.	0.37	0.55	0.75	1.5
WHEEL SIZE	150 X 20 X 31.75	200 X 25 X 31.75	250 X 25 X 31.75	300 X 40 X 38.10
WHEEL BORE	31.75	31.75	31.75	38.10,31.75
POWER	3PH/440V	3PH/440V	3PH/440V	3PH/440V
FREQUENCY	50 HZ	50 HZ	50 HZ	50 HZ
R.P.M.	2800	2800	2800	2800
APPROX WEIGHT	19 KG	30 KG	36 KG	55 KG
MOTOR MAKE	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’
SHAFT SIZE	15.80 MM	19.00 MM	19.00 MM	25.40 MM
BODY MATERIAL	CAST IRON	CAST IRON	CAST IRON	CAST IRON
BUFFING SHAFT DIAMETER	28 MM	35 MM	35 MM	38 MM
SHAFT LENGTH	150 MM	230 MM	230 MM	230 MM
SWITCH (10A)	ON/OFF	ON/OFF	ON/OFF	ON/OFF

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER

GRINDER CUM POLISHER (1 PHASE)

POWERGROW Polisher, retreating machine, grinder cum polisher is designed with up-to-date improvement to give the best performance. Special care has been taken in design of the core winding and in balance adjustment of the rotor for smooth running with maximum efficiency. Ball-bearing housing is suitably sealed with special care to prevent ingress of fine dust, produced by buffing operation, in to the bearings. The machines are robust in construction and are specially designed to give years of trouble-free service. This Products use of one side buffing and other side Grinding uses.

Application

INDUSTRIAL TOOL GRINDING, SMALL GRINDING OF IRON AND CASTING PARTS, FABRICATION, MACHINE TOOLS, SMALL WORKSHOP LATH AND DRILL BITS, METALWORKING, EDUCATION AND TRAINING, WOODWORKING.

Features

GRINDER CUM POLISHER (1 PHASE)

POWERGROW Polisher, retreating machine, grinder cum polisher is designed with up-to-date improvement to give the best performance. Special care has been taken in design of the core winding and in balance adjustment of the rotor for smooth running with maximum efficiency. Ball-bearing housing is suitably sealed with special care to prevent ingress of fine dust, produced by buffing operation, in to the bearings. The machines are robust in construction and are specially designed to give years of trouble-free service. This Products use of one side buffing and other side Grinding uses.

Application

INDUSTRIAL TOOL GRINDING, SMALL GRINDING OF IRON AND CASTING PARTS, FABRICATION, MACHINE TOOLS, SMALL WORKSHOP LATH AND DRILL BITS, METALWORKING, EDUCATION AND TRAINING, WOODWORKING.

Features

Specifications

GRINDER CUM POLISHER (1 PHASE)

MODEL NO.	PGP-05	PGP-06	PGP-07	PGP-08
H.P.	0.5	0.75	1	2
K.W.	0.37	0.55	0.75	1.5
WHEEL SIZE	150 X 20 X 31.75	200 X 25 X 31.75	250 X 25 X 31.75	300 X 40 X 38.10
WHEEL BORE	31.75	31.75	31.75	38.10,31.75
POWER	1PH/230V	1PH/230V	1PH/230V	1PH/230V
FREQUENCY	50 HZ	50 HZ	50 HZ	50 HZ
R.P.M.	2800	2800	2800	2800
APPROX WEIGHT	19 KG	30 KG	43 KG	65 KG
MOTOR MAKE	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’
SHAFT SIZE	15.80 MM	19.00 MM	19.00 MM	25.40 MM
BODY MATERIAL	CAST IRON	CAST IRON	CAST IRON	CAST IRON
BUFFING SHAFT DIAMETER	28 MM	35 MM	35 MM	38 MM
SHAFT LENGTH	150 MM	230 MM	230 MM	230 MM
SWITCH (10A)	ON/OFF	ON/OFF	ON/OFF	ON/OFF

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER
