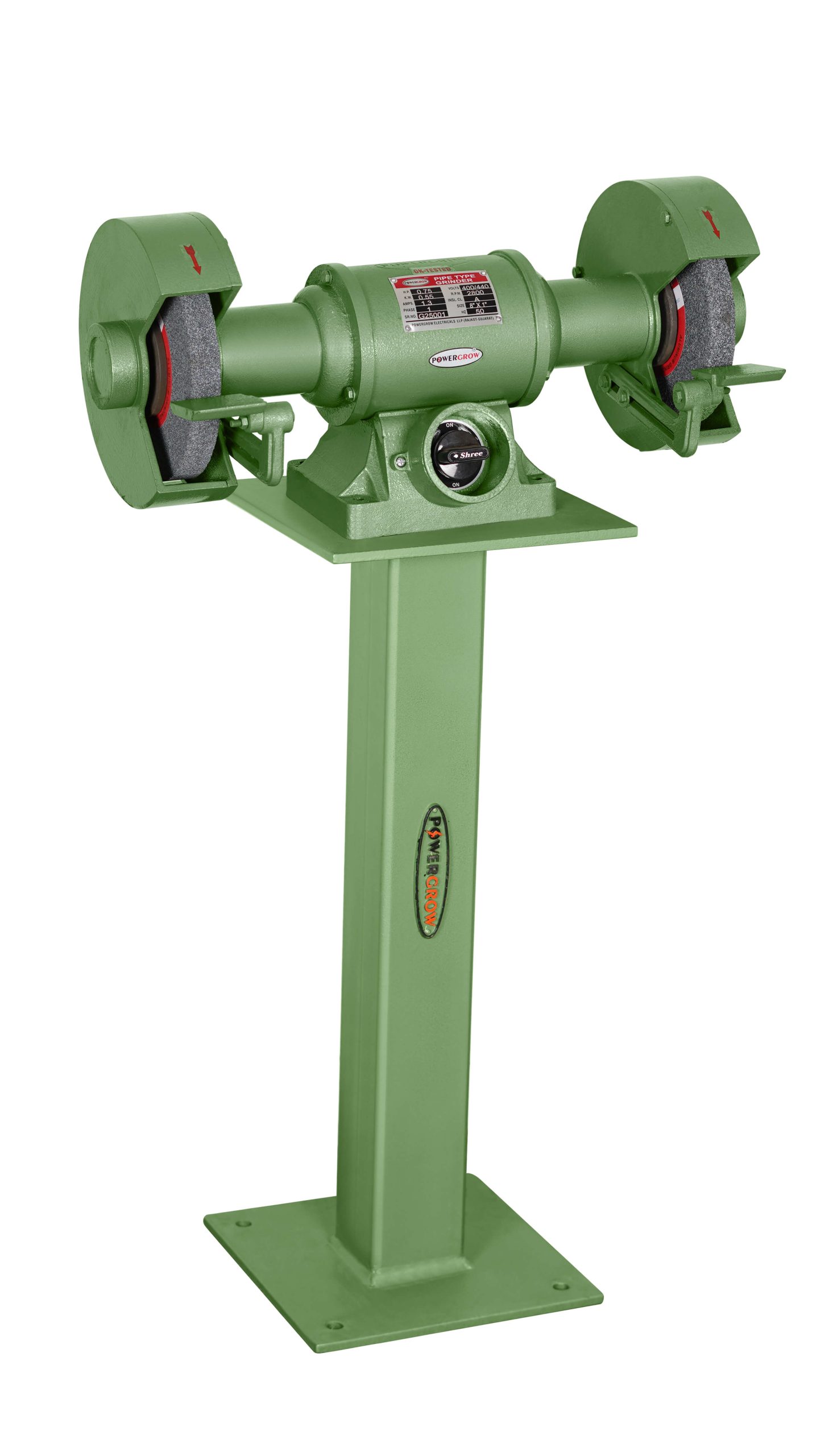

MS PEDESTAL PIPE TYPE GRINDER

PIPE TYPE PEDESTAL GRINDER (3 PHASE & 1 PHASE)

Powergrow make Pedestal Grinders are suitable for use for forging Industries, foundries and for heavy duty grinding jobs. “Powergrow” Make Heavy Duty Pipe Type Bench Grinders are available from 0.5 HP to 1 HP in 2800 RPM as per application of use. These are customized as per the specifications of our clients and are designed and developed in accordance with the latest Indian standards. Thus, our state-of-the-art facilities and technical expertise has helped us considerably in maintaining excellence throughout our business operations’ pedestal grinder is a similar or larger version of grinder that is mounted on a pedestal, which may be bolted to floor or may sit on rubber feet.

Application

INDUSTRIAL TOOL GRINDING, SMALL GRINDING OF IRON AND CASTING PARTS FABRICATION, MACHINE TOOLS, SMALL WORKSHOP LATH AND DRILL BITS.

Features

Specifications

MODEL NO.	PPPG-1	PPPG-2	PPPG-3
H.P.	0.50	0.75	1
K.W.	0.37	0.55	0.75
WHEEL SIZE	150X20	200X25	250X25
WHEEL BORE	31.75	31.75	5
POWER	3PH/440V 1PH/230V	3PH/440V 1PH/230V	3PH/440V 1PH/230V
FREQUENCY	50HZ	50HZ	50HZ
R.P.M.	2800	2800	2800
APPROX WEIGHT	65 KG	70 KG	110 KG
MOTOR MAKE	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’
BEARING (2RS)	6204 (2PIC)	6205 (2PIC)	6205 (2PIC)
SHAFT SIZE	15.80 MM	19.00 MM	19.00 MM
BODY MATERIAL	CAST IRON	CAST IRON	CAST IRON
SWITCH (10A)	SWITCH	SWITCH	SWITCH
L X B X H (MM)	540 X 300 X 1240	500 X 300 X 1060	680 X 380 X 1105
MS STAND MODEL	PPS-4	PPS-4	PPS-5

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER

Application

Features

Application

Features

Specifications

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER
