SINGLE BELT GRINDER

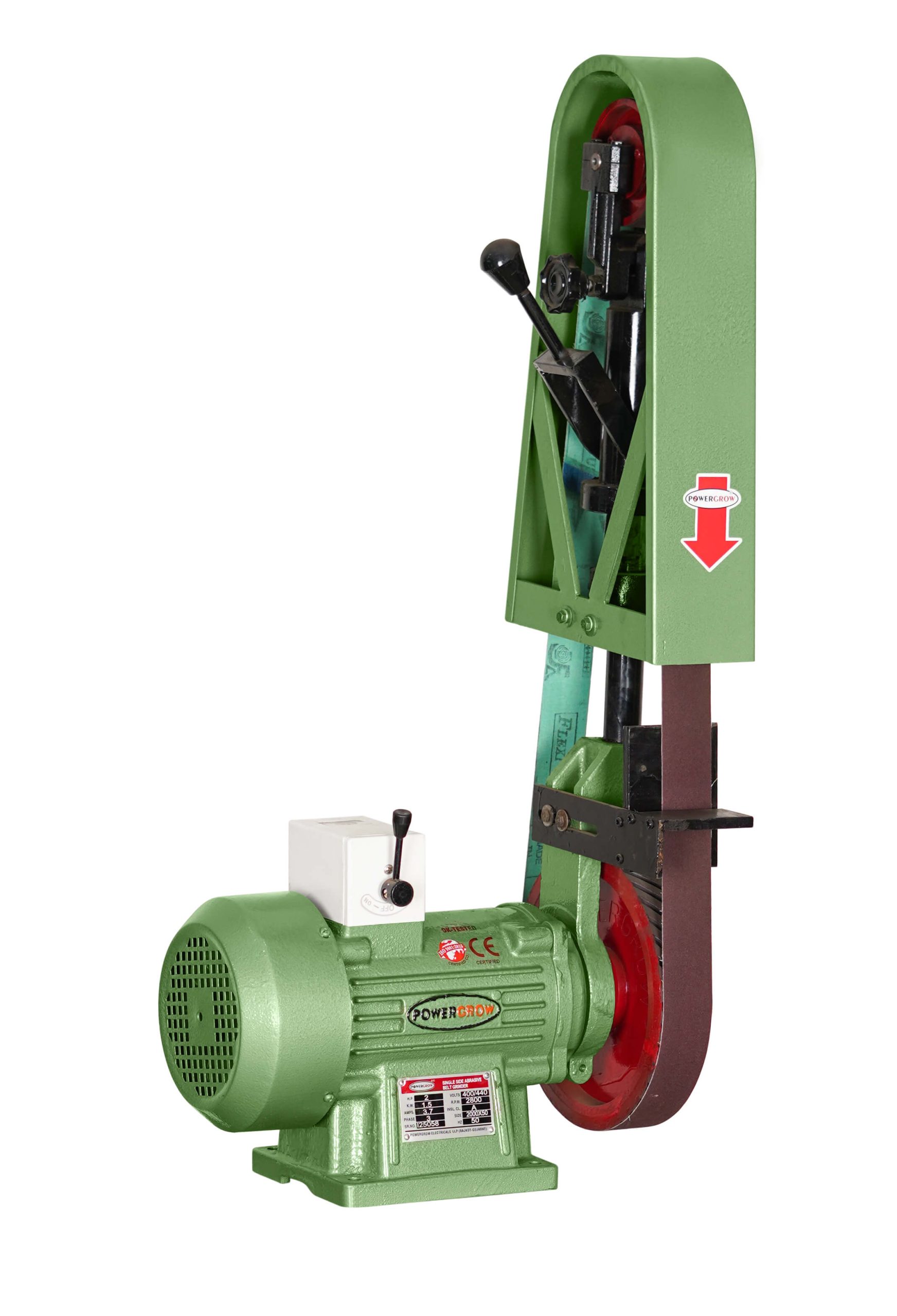

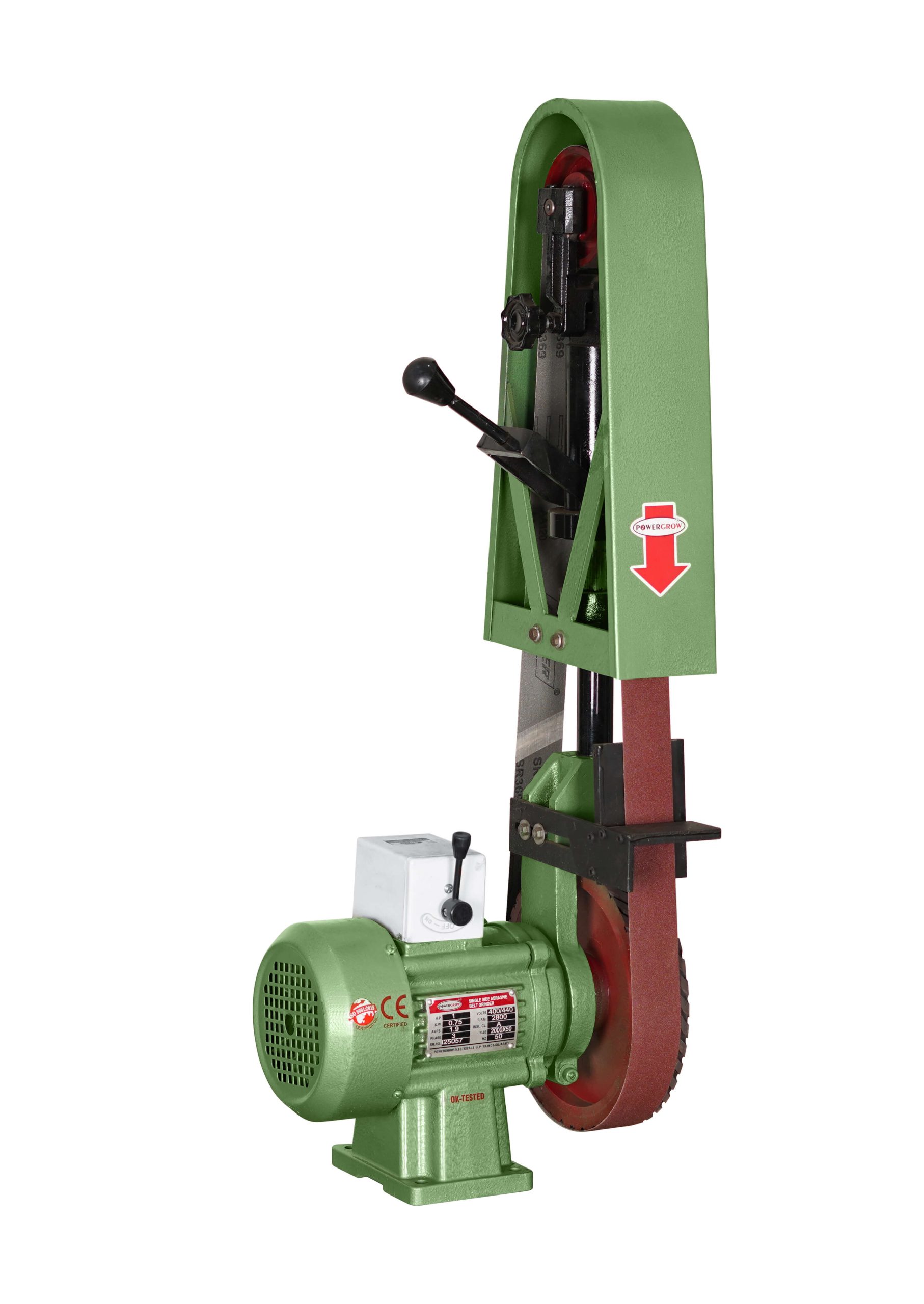

SINGLE SIDE ABRASIVE BELT GRINDER

“POWERGROW” Brand Abrasive Belt Grinding Machine. Offered range of product is known for its precise quality. These are assembled from optimum quality components under the guidance of skilled and experienced professionals. Moreover, offered array of product is highly demanded in the market. Belt tensioning can easily be done by just pulling down the handle which is loaded on a spring. A belt adjusting knob helps to easily adjust the belt on the wheel. A serrated contact rubber wheel behind the abrasive belt helps to effortlessly ground and finish castings, forgings, hardware, kitchenware, metal fabricated parts, plastic parts, glass edges, etc. Other than standard single end belt grinders.

Application

Hardware and Kitchenware Items, plastic product, tool grinding, Finishing of casting, aluminium metal, Dia casting metal Surface roughness, removal of micro burrs, cosmetic finishes, polishing.

Features

Specifications

SINGLE SIDE ABRASIVE BELT GRINDER

MODEL NO.	PSBG-01,07	PSBG-02,08	PSBG-03	PGBG-04	PGBG-05	PGBG-06
H.P.	1	2	3	2	3	3
K.W.	0.75	1.5	2.2	1.5	2.2	2.2
BELT SIZE	2000 X 50	2000 X 50	2000 X 50	2000 X 100	2000 X 100	2000 X 150
RUBBER WHEEL	200 X 50 X 25	200 X 50 X 25	200 X 50 X 25	200 X 100 X 25	200 X 100 X 25	200 X 150 X 25
POWER	3PH/440V 1PH/230V	3PH/440V 1PH 230V	3PH/440V	3PH/440V	3PH/440V	3PH/440V
FREQUENCY	50 HZ	50 HZ	50 HZ	50 HZ	50 HZ	50 HZ
R.P.M.	2800	2800	2800	2800	2800	2800
APPROX WEIGHT	50 KG	52 KG	55 KG	80 KG	85 KG	90 KG
MOTOR MAKE	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’	‘’POWERGROW’’
SHAFT SIZE	25 MM	25 MM	25 MM	25 MM	25 MM	25 MM
UP PULLEY SIZE	133(DIA.) X 60(WIDTH)	133(DIA.) X 60(WIDTH)	133(DIA.) X 60(WIDTH)	133(DIA.)X 125(WIDTH)	133(DIA.)X 125(WIDTH)	133(DIA.)X 175(WIDTH)
PULLEY BEARING	6203 (2 PIC)	6203 (2 PIC)	6203 (2 PIC)	6205 (2 PIC)	6205 (2 PIC)	6205 (2 PIC)
SWITCH (16A)	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
WINDING	100%COPPER	100%COPPER	100%COPPER	100% COPPER	100% COPPER	100% COPPER
SUITABLE PEDSTAL STAND	PPS-01 PPS-06	PPS-01 PPS-06	PPS-01 PPS-06	PPS-01 PPS-02 PPS-06	PPS-01 PPS-02 PPS-06	PPS-01 PPS-02 PPS-06

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER

Application

Features

Application

Features

Specifications

ALL DIMENSION ARE IN MM & APPROXIMATE DATA ,WINNING-100% COPPER
